Upgrading VMware Cloud Foundation to version 9.1: Part 3 – NSX Manager, vCenter & ESXi Upgrade

June 23, 2026Roshan ChavanLeave a comment

Step 6: Upgrade NSX Manager

Run NSX upgrade prechecks and resolve any reported issue before starting the upgrade.

You can also check high level upgrade sequence,

Once all prechecks completes, you can start the upgrade or schedule it,

Important: You may not see the NSX version fully reflected immediately after the NSX Manager upgrade. NSX is not considered fully upgraded until all ESX hosts in every vSphere cluster that shares the NSX Manager are upgraded to 9.x and the NSX finalize procedure completes.

However, the latest version can be seen on NSX Appliance page,

After NSX is upgraded, it disappears from the active upgrade list and the next component available for upgrade which is vCenter.

Step 7: Upgrade vCenter

The vCenter upgrade workflow provides two upgrade options.

vCenter Reduced Downtime Upgrade: This method uses a migration-based approach. In this approach, a new vCenter appliance is deployed and the current vCenter data and configuration is copied to it. During the preparation phase of a reduced downtime upgrade, the source vCenter instance and all resources remain online. The only downtime occurs when the source vCenter instance is stopped, the configuration is switched over to the target vCenter, and the services are started.

vCenter Regular Upgrade: Requires downtime of the vCenter instance during the entire upgrade process.

The reduced downtime method requires an additional temporary IP address from the VM Management subnet. Provide the required details and complete the wizard.

Completing this wizard prepares the upgrade configuration but does not immediately trigger the upgrade.

Return to VCF Operations to schedule the vCenter upgrade and cutover.

Choose appropriate options here,

And schedule.

Upgrade status can be monitored,

During the reduced downtime upgrade, a temporary vCenter appliance is created and data is migrated to it. After the workflow completes, review the upgrade sequence again to confirm the next available component.

Step 8: Configure and Upgrade ESX Hosts

Before upgrading ESX hosts, create and assign the correct vSphere Lifecycle Manager image with the required ESX version and vendor add-ons.

Create and assign the correct image with the target ESX version and vendor add-ons.

Then import the newly created image into VCF Operations.

Assign the newly created image in “configure upgrade” wizard,

Choose the appropriate upgrade options. In my lab, I selected the sequential upgrade option.

Review and Finish,

Then you can schedule or immediate upgrade from the upgrade page,

Got an error here in prechecks,

“Error – The current vCenter is not licensed by a license server.”

I’ve put together a short blog post on it,

VCF Upgrade Precheck Error: vCenter Is Not Licensed by a License Server

Back to upgrade process and hit upgrade for esxi,

Monitor the status,

At a high level, each ESX host enters maintenance mode, virtual machines are migrated to other hosts, and the host is upgraded before moving to the next host.

After the workflow completes, all ESX hosts are upgraded to version 9.1.

Step 9: Upgrade Edge Clusters

The final lifecycle step is to upgrade the NSX Edge clusters in the environment.

Click on Configure,

My lab environment does not have any Edge clusters, so I proceeded through the workflow and completed the step.

Click Upgrade on last step,

Upgrade Complete

At this point, the management domain upgrade from VCF 9.0.2 to VCF 9.1 is complete.

As a final validation, review the Component Versions tab and confirm that all upgraded components report the expected VCF 9.1 versions.

After the management domain is upgraded, follow the same procedure for each workload domain in the environment.

Here is the official documentation link for an upgrade process,

Upgrading to VMware Cloud Foundation 9.1

Reminder: This blog covers the upgrade process from VCF version 9.0.2 to VCF 9.1. If you are upgrading from VCF 5.x to VCF 9.1, review the official documentation and supported upgrade path before starting.

The next and final blog in this series will cover post-upgrade validation checks after upgrading to VCF 9.1. Stay tuned.

Lessons Learned and Practical Notes

The upgrade process automatically decommissions the standalone VCF Operations Fleet Management appliance. Fleet management capabilities move into the updated VCF Operations and management services architecture.
VCF Identity Broker should be moved to the shared VM Management network before the upgrade if it is currently deployed on a different port group.
After upgrading SDDC Manager to version 9.1, reconfigure the online or offline depot to use an activation code from the VCF Business Services console instead of a download token.
Embedded VCF Identity Broker is automatically upgraded during the vCenter instance upgrade.
You must provide a dedicated IP range for the VCF Services Runtime. A minimum of 12 IP addresses is required.
After deployment, do not move the VCF management services VMs to a different resource pool or VM folder. If you move the VMs to a new resource pool or VM folder, subsequent patching, deployment, or scale out operations fail.
If you have VCF Identity Broker 9.0.x, identity broker 9.1 deployment is skipped and you can later upgrade.
Embedded VCF Identity Broker is automatically upgraded during the vCenter instance upgrade.
After VCF management services are deployed, if VCF Operations is in connected mode, the license server is automatically registered and licenses are transferred to the license server.

Hope the content is helpful. Good luck with an upgrade. And post comments if you encounter new errors or if there are new lessons learned. Thank You.

Are you looking out for compute resources (CPU / Memory / Storage) to practice VMware products…? If yes, then click here to know more about our Lab-as-a-Service (LaaS).

Upgrading VMware Cloud Foundation to version 9.1: Part 2 – SDDC Manager upgrade & Inro to VCF Management Services

June 23, 2026Roshan ChavanLeave a comment

Step 3: Upgrade SDDC Manager

Log in to SDDC Manager and navigate to Binary Management > Upgrade Binaries. Select VCF 9.1 and download the required upgrade bundle.

You can also perform binary management from VCF Operations. Before downloading binaries, make sure the software depot is configured correctly and reachable.

Next, run a precheck against the management workload domain from VCF Operations.

Ops> Build> Lifecycle> Select mgmnt wld under the vcf instance and click on “Run Precheck”

Target Version: 9.1
Precheck scope: All

Run Precheck,

Review all failed checks and resolve them before continuing.

In my lab, I saw a few minor issues related to missing backups and support bundles. Each precheck failure included details and remediation guidance.

After resolving issues, select Retry All Failed to rerun the failed checks.

Mine came down to 6 errors from 10 after resolving some.

Note: Some warnings or errors may not block the upgrade, but you should understand each reported issue before proceeding.

Once done, go back to the instance level, and perform prechecks against the SDDC manager again,

Once all required issues are addressed, start the SDDC Manager upgrade and monitor the workflow for failures.

Monitor the upgrade for any errors,

After the workflow completes successfully, SDDC Manager is upgraded to VCF 9.1.

Step 4: Reconfigure Software Depot Authentication

After upgrading SDDC Manager to version 9.1, log in to SDDC Manager and navigate to Administration > Depot Settings. Reconfigure your online or offline depot to use an activation code from the VCF Business Services console instead of the previous download token model.

Copy the depot registration ID and log in to the VCF Business Services console.

From the Business Services console (VCF Business Services), go to Software Depot Registration and register the SDDC Manager depot.

Paste the ID and Register,

Copy the generated activation code, but do not complete the registration workflow until the code has been applied in SDDC Manager.

SDDC Manager> Enter the copied code and configure,

Step 5: Deploy VCF Management Services

Click on the instance level,

In VCF Operations, return to the instance-level upgrade workflow. The first task, Configure Depot, should now show as completed.

VCF 9.1 introduces enhanced management capabilities through a new set of VCF management services.

The following VCF management services components are installed as part of the upgrade.

VCF services runtime. Platform that runs the VCF management services components.
Fleet lifecycle and SDDC lifecycle. Orchestrate and automate lifecycle management.
Software depot. Provides central binary management.
Identity broker. Provides single sign-on capabilities.
VMware Salt. Detect configuration drift and manage compliance for your infrastructure.
The license server component also gets deployed to provide secure and integrated license management.

Next, download the required binaries for the additional VCF 9.1 management services.

Required Binaries:
1. Fleet Lifecycle
2. SDDC Lifecycle
3. VCF Services Runtime
4. Salt RaaS
5. Salt Master
6. VCF Identity Broker
7. Software Depot
8. Telemetry
9. License Server

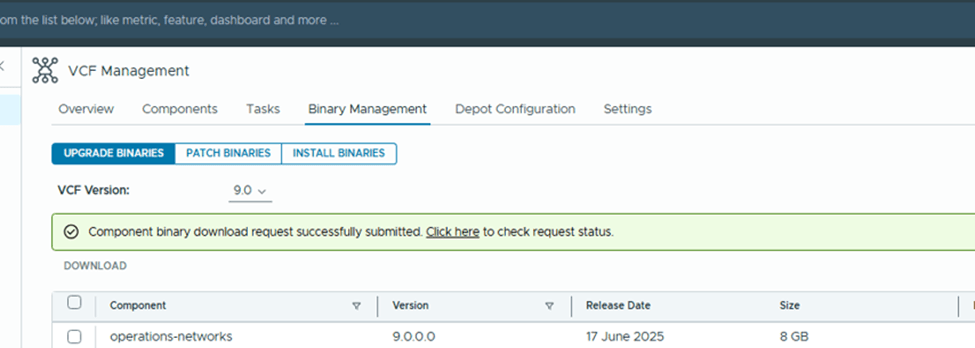

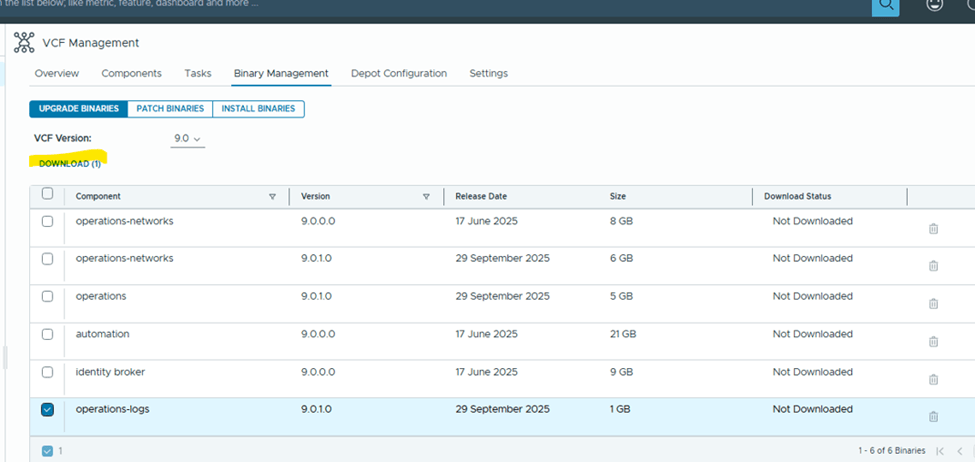

Go to the Binary Management> Select the version> Install Binaries,

Select all required binaries and download it,

Once downloaded, back to upgrade page install all required components,

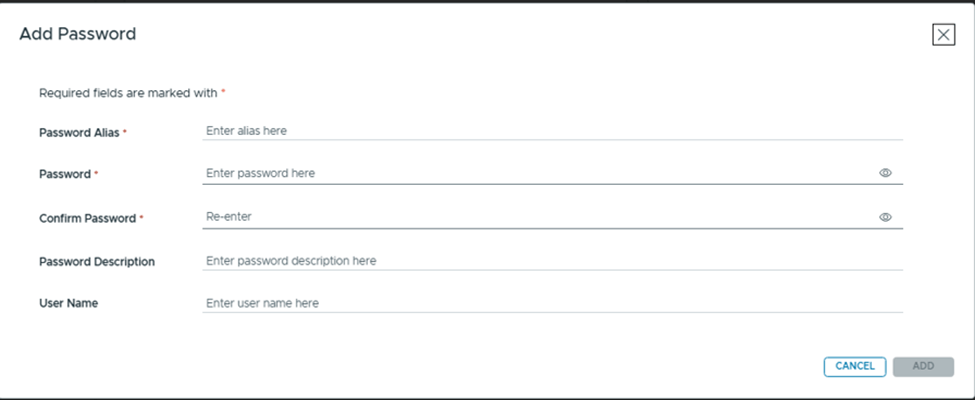

Enter the password and connect,

This is one of the areas where the workflow can become confusing, especially when providing the VCF Services Runtime CIDR.

VCF Servies runtime CIDR

VCF Services Runtime CIDR: Provide a dedicated IP range for the VCF Services Runtime. A minimum of 12 IP addresses is required. In my lab, I allocated 12 IP addresses from the VM Management network in CIDR format.

Create DNS records for the new management services components.
VCF Service Runtime
Fleet Components
Instance Components
Identity Broker
License Server

During the upgrade of the first VCF instance that hosts VCF Operations, the following management services are deployed.

VCF services runtime
Fleet lifecycle
SDDC lifecycle
Software depot
Identity broker
Salt RaaS
Salt master
Telemetry

Generate and copy the password for VCF Identity Broker, then start the installation.

Monitor the task from SDDC Manager. This workflow deploys the required management service appliances on the management domain vCenter.

With SDDC Manager upgraded and the new VCF Management Services deployed, the VCF 9.1 environment is now ready for the next phase of the upgrade journey. These steps are important because they establish the updated lifecycle, depot, identity, licensing, and management service foundation required for the rest of the platform upgrade.

See you in the next blogpost.

Are you looking out for compute resources (CPU / Memory / Storage) to practice VMware products…? If yes, then click here to know more about our Lab-as-a-Service (LaaS).

How to Clean Up a Failed Edge Deployment in VCF 9 which has “External Connectivity” configured.

May 19, 2026May 19, 2026Roshan ChavanLeave a comment

If an Edge deployment fails in VMware Cloud Foundation (VCF) 9 because of incorrect input values or an incomplete configuration, you may need to clean up the partially created networking objects before you can try again. In this post, I walk through the cleanup process using the VCF 9.0.2 user interface and show which objects need to be removed from both NSX and vCenter.

In my case, the Edge deployment was started with incorrect values by mistake. That left behind partial configuration that prevented a clean redeployment. The goal of this cleanup is to remove all of the network objects associated with the failed deployment so the Network Connectivity workflow can be run again from the beginning.

I started the edge deployment and provided some wrong values by mistake. And now we have to delete it so that it can be redeployed using correct values.

In earlier VCF 5.x environments, this type of cleanup often required the Edge Cluster Deployment Removal Tool. In VCF 9.x with “External Connectivity” configured, most of the cleanup can be completed through the UI.

What the Failed Deployment Looks Like

Below is an example of the failed Edge deployment as seen in the VCF workflow and in the NSX UI.

One of the most visible symptoms is that all interfaces on the Tier-0 gateway remain down, including all configured BGP neighbors. This confirms that the deployment did not complete cleanly and that the remaining objects need to be removed before retrying.

Step 1: Detach the External Connection from the Default Transit Gateway

Start by removing the external connection attached to the Default Transit Gateway. This is an important first step because the downstream objects cannot always be removed cleanly while that connection is still attached.

Open the gateway configuration, edit the connection settings, and remove the attached external connection.

Save the change, then delete the external connection object itself so it does not remain orphaned in the environment.

Then delete the external connection.

Step 2: Delete the Auto-Created Tier-0 Gateway

After the external connection has been removed, delete the default Tier-0 gateway that was created during the failed deployment. This clears the routing object and its associated configuration from NSX.

Step 3: Delete the Edge Cluster from vCenter

Next, remove the Edge cluster from the vCenter UI. This cleans up the cluster object from the infrastructure side, but the process is not fully complete yet.

Step 4: Manually Delete the Edge Nodes from NSX

Deleting the Edge cluster in vCenter does not remove the Edge nodes from NSX. To complete the cleanup, go to the NSX UI and manually delete the Edge nodes that were created during the failed deployment.

Step 5: Remove the Auto-Created Segments

Once the Edge nodes are gone, delete any NSX segments that were automatically created during the original configuration process. Leaving these behind can cause confusion or conflicts during the next deployment attempt.

Step 6: Delete the Auto-Created Port Groups from vCenter

The last cleanup task is to remove any port groups that were automatically created in vCenter as part of the failed Edge deployment. This ensures the environment is fully reset before you run the workflow again.

Conclusion

After these objects are removed, the environment should be clean enough to start the Network Connectivity configuration again from the beginning. If your failed Edge deployment left behind partial NSX and vCenter objects, this sequence provides a practical way to reset the environment and redeploy using the correct values.

Here are dome reference article which would be helpful when it comes to deleting failed edge clusters,
Unable to Edit the Management IP (IPv4) of an Edge node in VCF 9
VCF NSX-T Edge Cluster Deployment Removal Tool

That’s it for now. Hope the information is helpful. Thank You.

Are you looking out for compute resources (CPU / Memory / Storage) to practice VMware products…? If yes, then click here to know more about our Lab-as-a-Service (LaaS).

VMware vCloud Foundation 9 – Licensing Part 1

December 18, 2025Roshan ChavanLeave a comment

VCF 9 adopts a streamlined, subscription-based licensing model that simplifies management and compliance:

Single license file replaces multiple component-specific keys (vCenter, ESXi, NSX, etc.)
Licenses are version-agnostic, eliminating version-based key mismatches
Managed centrally through VCF Operations and the VCF Business Services (VCFBS) portal
Designed for both connected mode (auto-reporting) and disconnected mode (manual uploads every 180 days)

Let’s dive deeper into it. I have freshly deployed VCF 9 environment.

After you deploy the env, it operates in evaluation mode for up to 90 days. During that period, you must license your environment.

Here are details for one of the esxi from the env,

As you can see, I have 2 physical sockets on this esxi and cores per socket are 4. That sums up to 8 CPU cores. However, when it comes to license calculation, it by default calculates 16 cores per socket even if I just have 4 cores per socket.

So, total number of licensed core on this esxi would be 32 cores.

I have 4 esxi hosts in this management workload domain cluster, so the total number of licensed cores would be (4*32) 128 cores.

Primary licenses apply only to ESXi hosts by count of physical CPU cores, with a 16-core minimum per CPU.

Moving to add-on license. This applies to vSAN Capacity in TiB’s. And the formula is, 1 TiB per licensed core. In my case, I will have 128 TiB allowed storage since I have 128 cores. For storage-heavy use cases, you need to purchase additional vSAN add-on capacity license.

Maintaining license compliance now includes periodic usage reporting:
Connected Mode (Internet Connection Required): VCF Operations sends usage data automatically each day; updates required every 180 days

Disconnected Mode (Dark Site): Manually download, upload, and activate new license files every 180 days

Failure to report can place hosts into expired status—preventing workloads until remedied. Basically, all hosts gets disconnected and you cannot start any vm. ☹

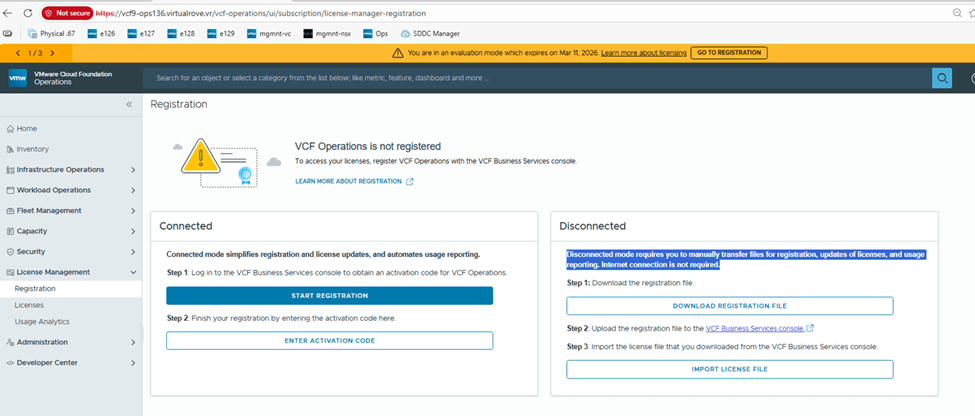

Let’s go to Ops> License Management> Registration

I will be demonstrating “Disconnected” mode for this blog.

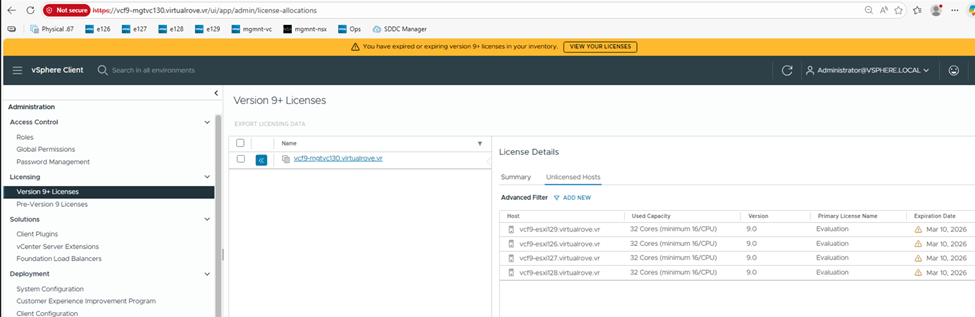

On the vCenter, it shows evaluation mode,

Hosts show “Unlicensed”

NSX side,

That reminds me,

As per VMware Documentation, here

Starting with version 9.0, the licensing model is the same for VCF and vSphere Foundation. You assign licenses only to vCenter instances. The other product components, including ESXi hosts, that are connected to the licensed vCenter instances, are licensed automatically.

You no longer license individual components such as NSX, HCX, VCF Automation, and so on. Instead, for VCF and vSphere Foundation, you have a single license capacity provided for that product.

For example, when you purchase a subscription for VCF, with the license you receive and assign to a vCenter instance, all components connected to that vCenter instance are licensed automatically.

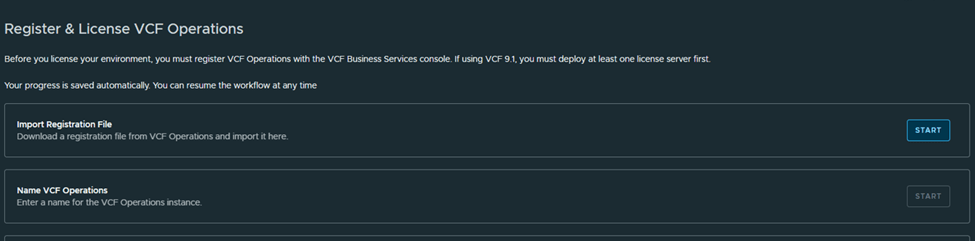

Back to “Registration”

Click on “Download Registration File”

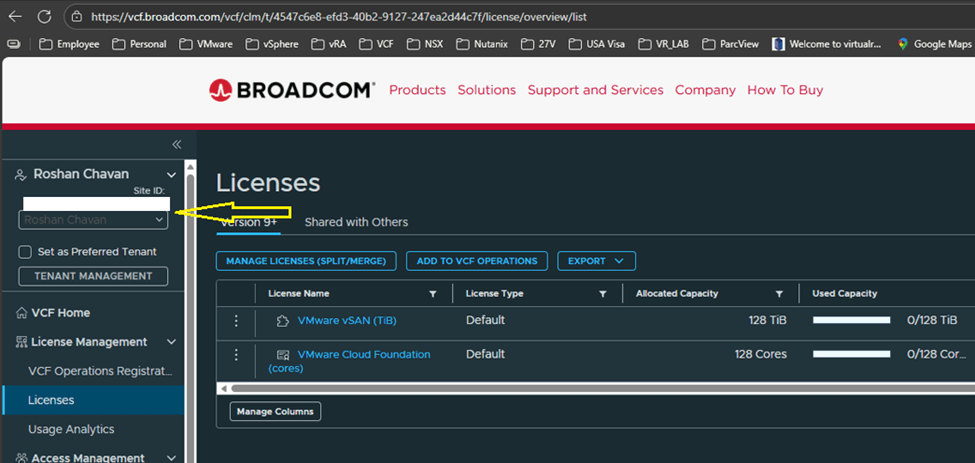

Switch the site ID and make sure it is correct one and click on License,

I have vmug licenses which are already showing up on the portal with my vmug entitlement.

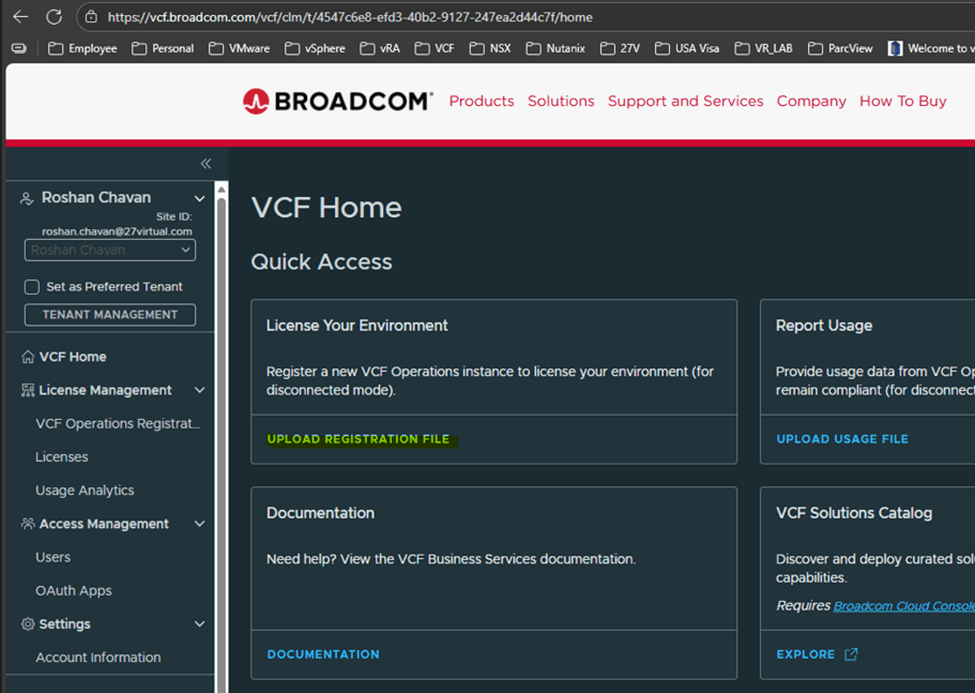

Back to VCF Home page on the portal, Click on “Upload registration file”

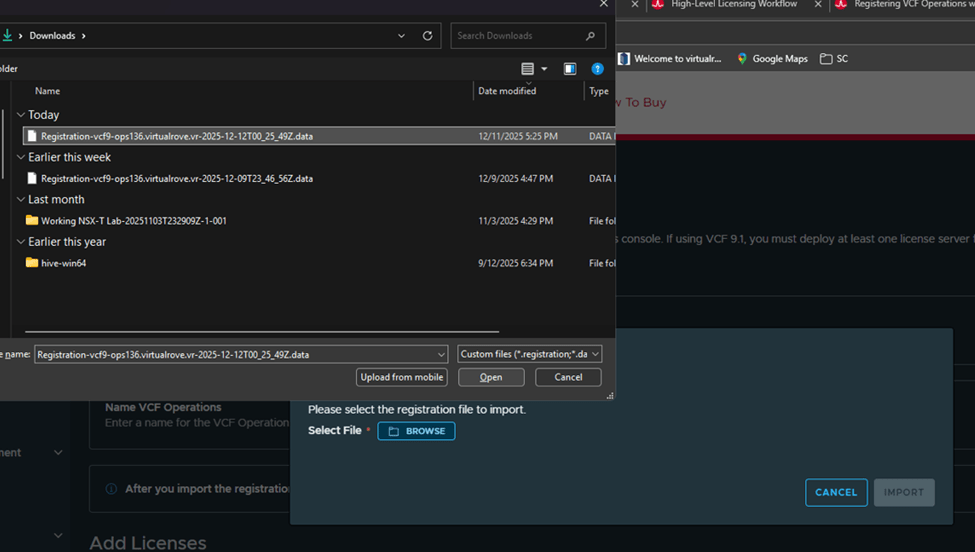

Upload the file that we downloaded earlier,

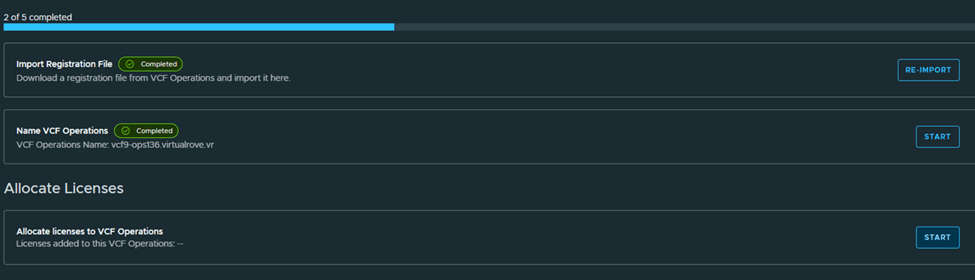

Next, Name the VCF Operations,

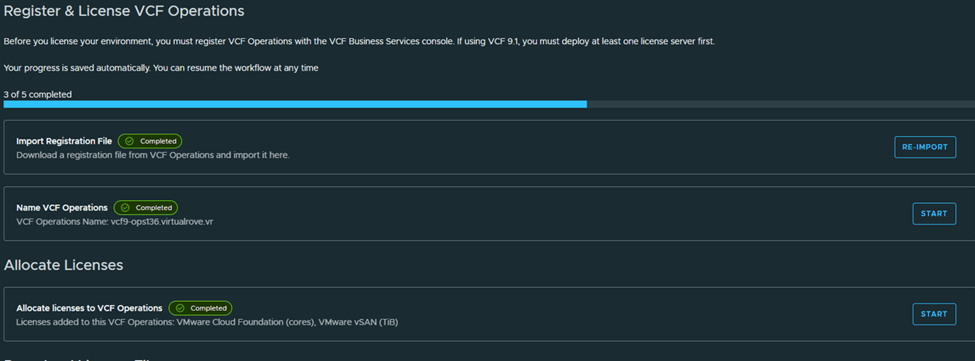

Next, Allocate licenses,

Next,
Download the generated licensed file and mark as completed,

We are done on this portal here,

Back to registration page shows this,

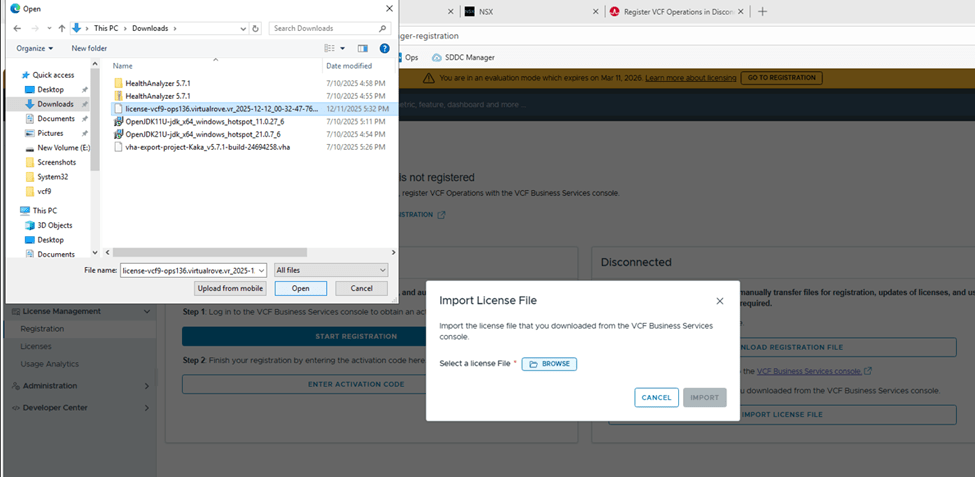

Let’s import the downloaded licensed file to our VCF operations in our environment,

Once imported, VCF Operations shows registered,

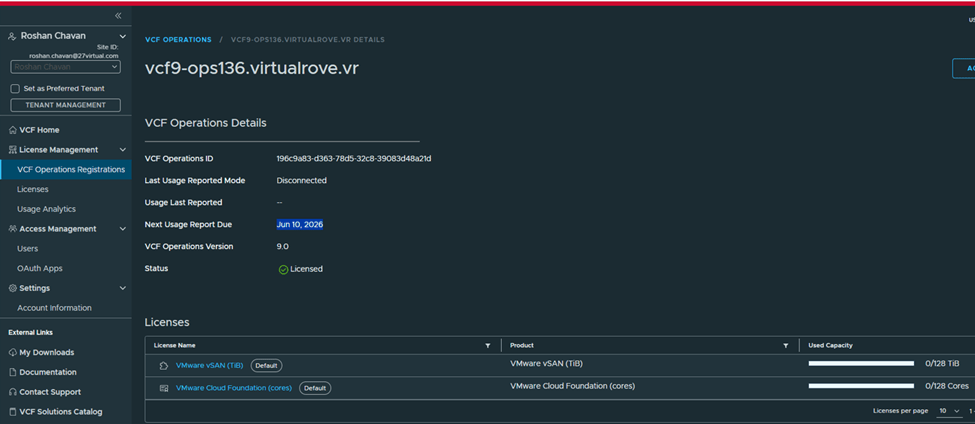

Status: Licensed
Mode: Disconnected
Next usage date: You need to report license usage before this date, or else all hosts will be disconnected.
VCF Operations name: shows Operations instance

We have licensed our VCF Operations instance. That’s a wrap for today! Stay tuned for the next blog—where we will talk about applying those licenses to vCenter and VSAN.

Are you looking out for compute resources (CPU / Memory / Storage) to practice VMware products…? If yes, then click here to know more about our Lab-as-a-Service (LaaS).

VMware vCloud Foundation 9 – Online Depot Configuration

December 13, 2025Roshan ChavanLeave a comment

To manage the lifecycle of VCF fleet level Management components such as VCF Operations, VCF Operations for networks, VCF Operations for logs, VCF Automation & VCF Identity Broker, you need to use VCF Operations fleet management appliance.
And before you can perform any of these operations, VCF Operations needs to be configured either for Online or Offline depot. This is the place where all downloaded binaries will be stored, which allows you to install, upgrade or patch any of the above-mentioned components.

Let’s dive into the lab,
I have freshly installed VCF 9.0 env. Plan is to install further components in the lab,

VCF Operations> Fleet Management> Lifecycle

As you can see “MANAGE” option is only available for VCF Operations. And rest needs to be installed. If I click on ADD on any of those,

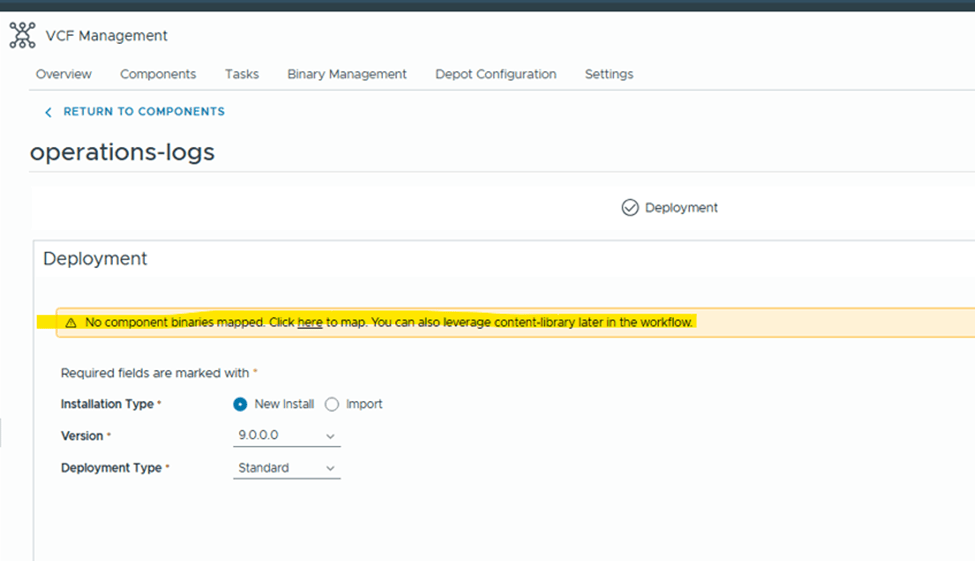

It says, NO component binaries mapped.
Under binaries management, Depot is not configured.

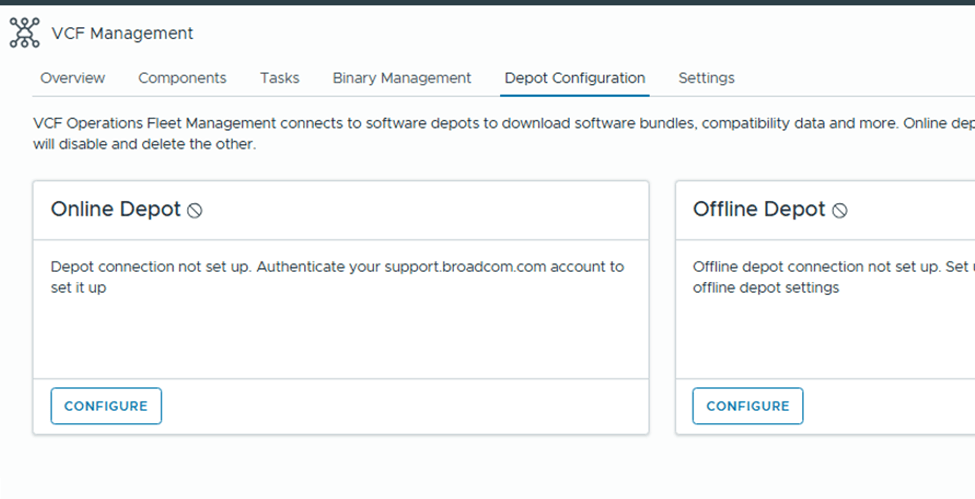

Under “Depot Config”, we have 2 options

Online Depot: Use this option if the appliance has internet connectivity and you have obtained download token from support.broadcom.com portal.

Offline Depot: This option requires you to setup either web server which has access to internet or local server where you would upload all binaries manually to.

For this example, I will be configuring “Online Depot”
Click on “Configure” under online depot,

Click on the + sign on the right side,

Password Alias: Any friendly name.
Password: Paste the token from Broadcom portal. (will explain later in this article on how to generate one)
Confirm Password: Paste the same token again.
Rest two are option fields.
